TRACTOR IMPLEMENT

19 - 30 HP 30 - 40 HP 40 - 60 HP 60 - 90 HP 90 - 120 HP 120 - 150 HP OLD MODELS

19 - 30 HP 30 - 40 HP 40 - 60 HP 60 - 90 HP 90 - 120 HP

T400 T420 T431 T433 T450 T451 T500 T503 T553 T550

T433NC T433NCGBC1 T433NHGBC T433SHGBC T433STEU T433STGBC3

1 - Motor 2 - Motorzubehör 3 - Kupplung / Bremse / Lenkung 4 - Getriebe 5 - Vorderachse 6 - Hydraulik / 3Punkt 7 - Karosserie & Kabine 8 - Elektrische Anlage 9 - Aufkleber / Zubehör

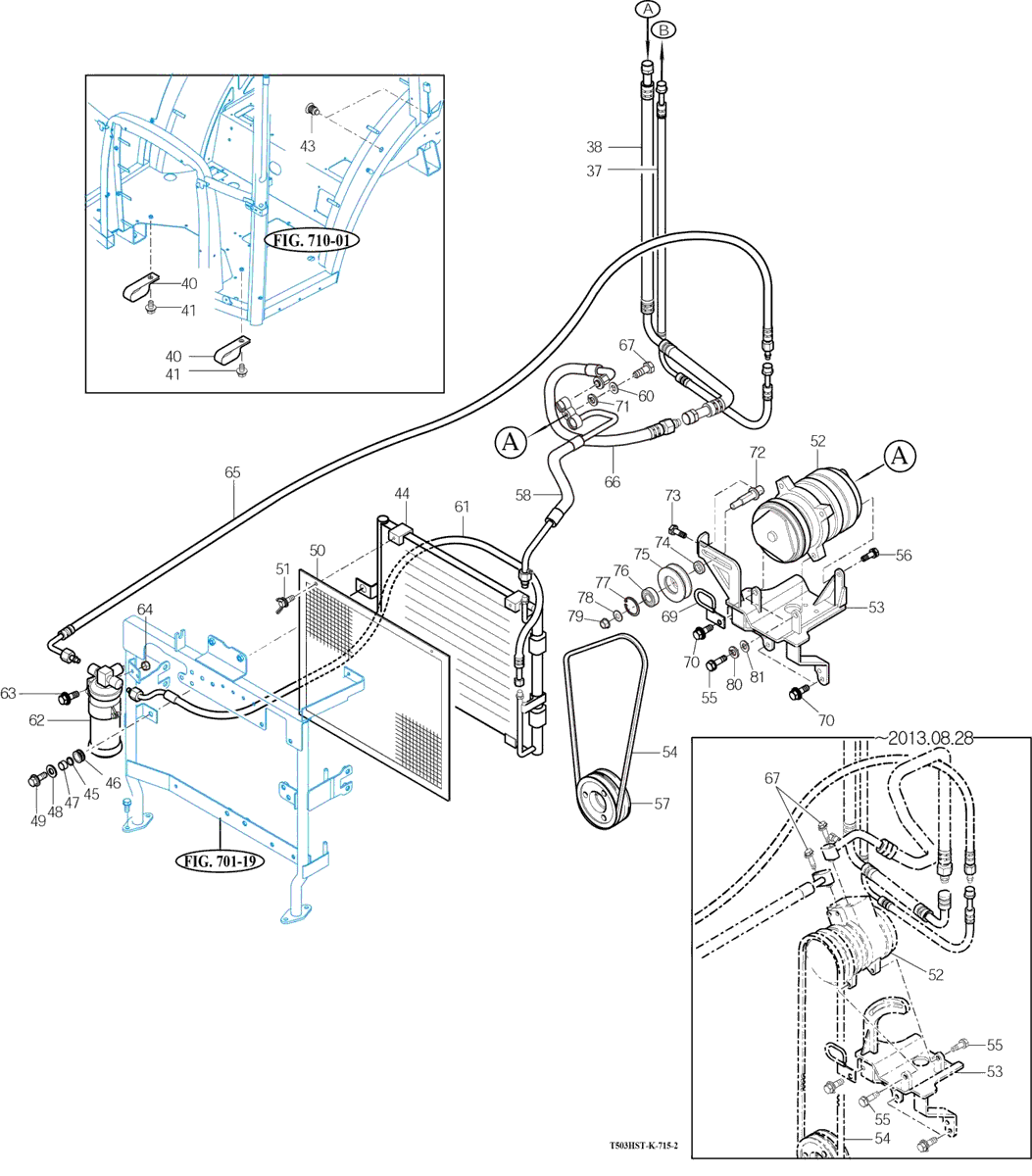

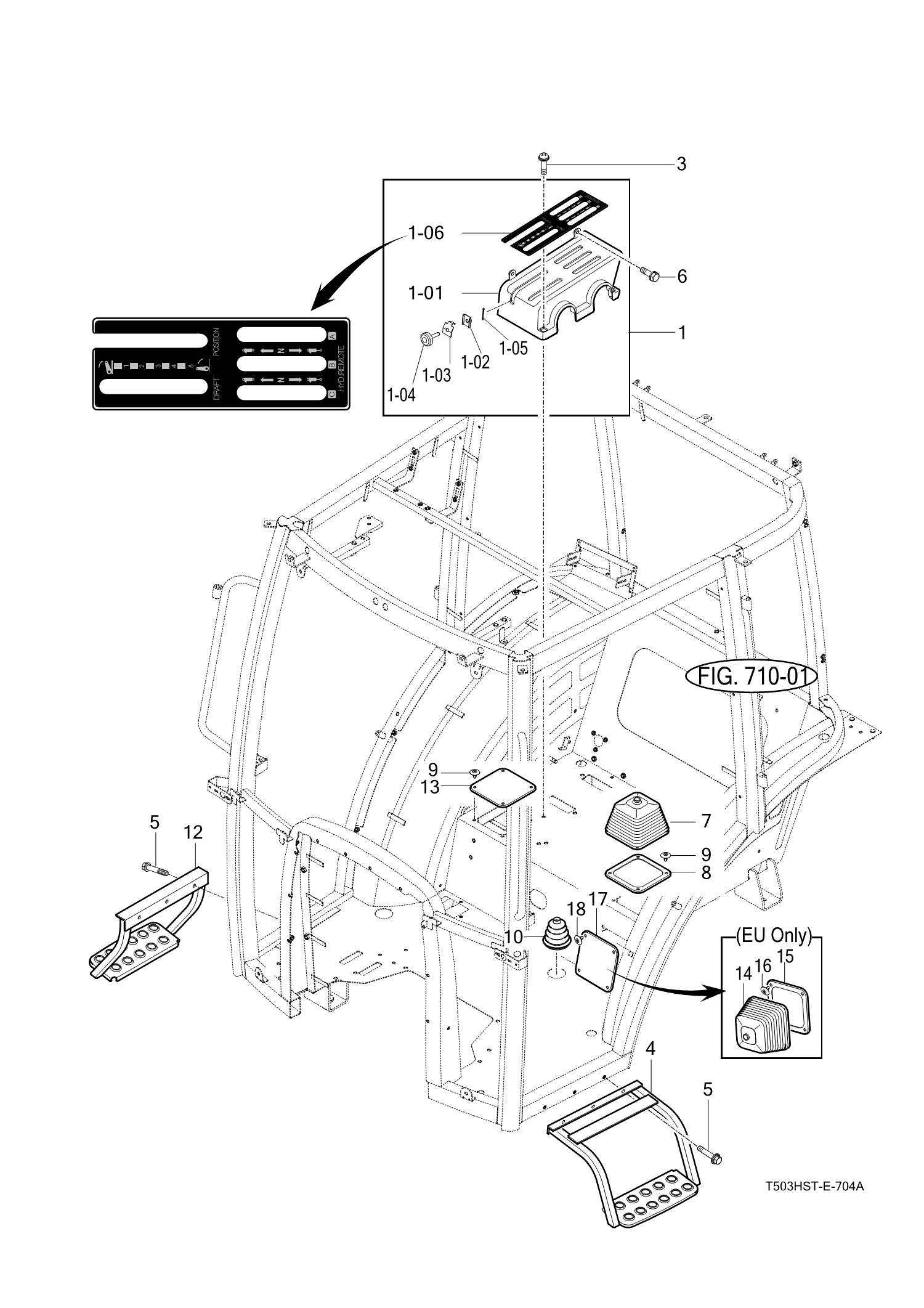

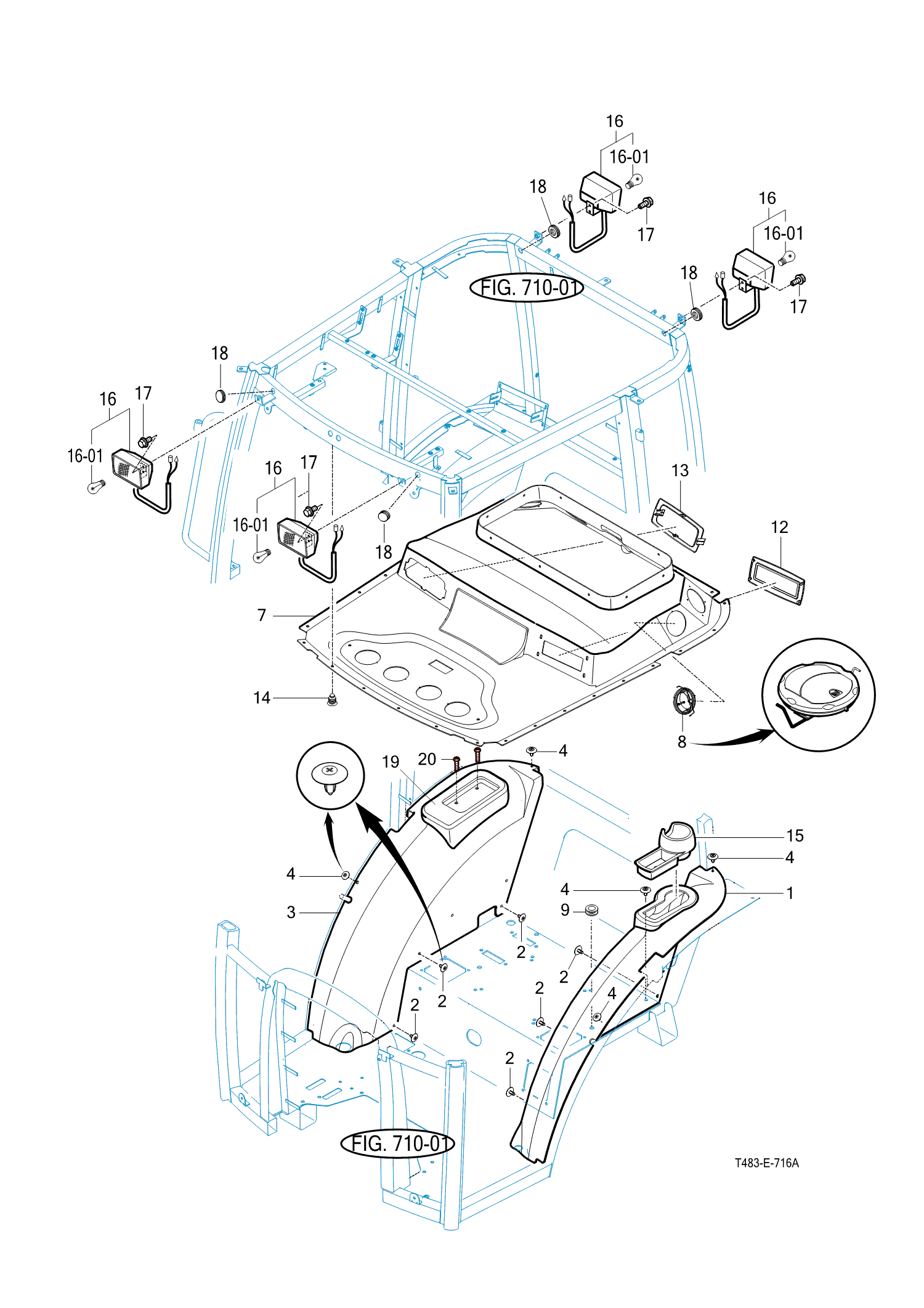

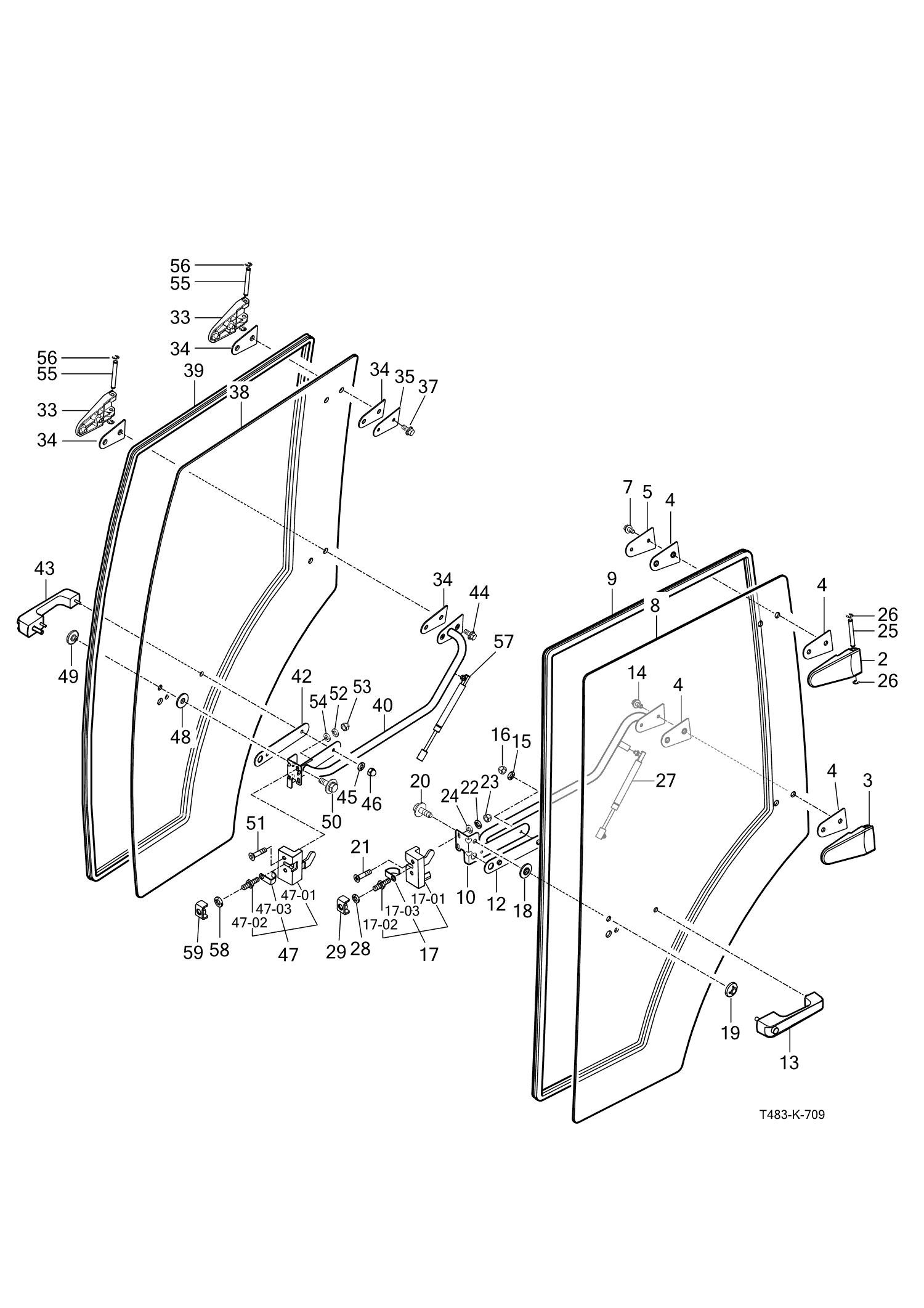

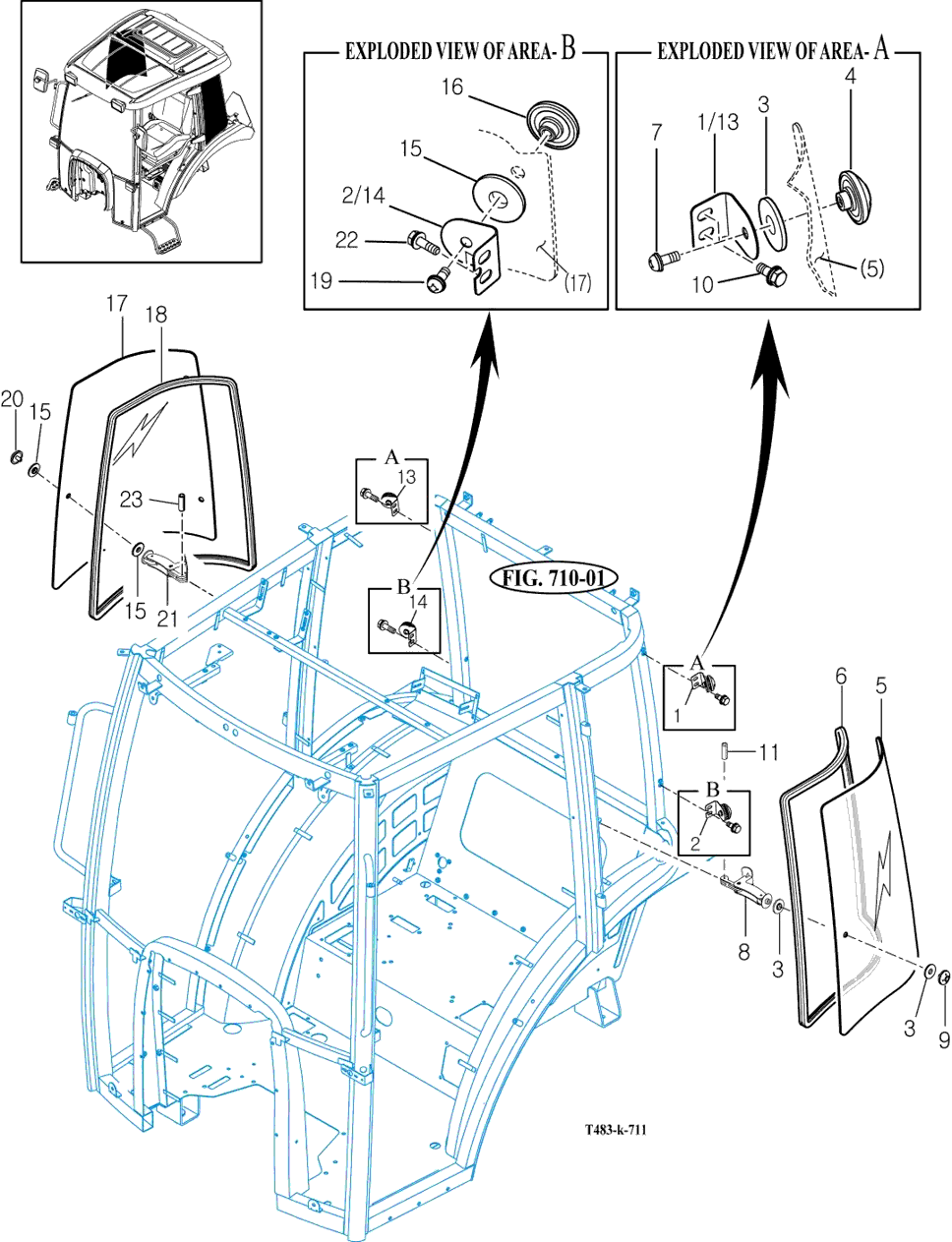

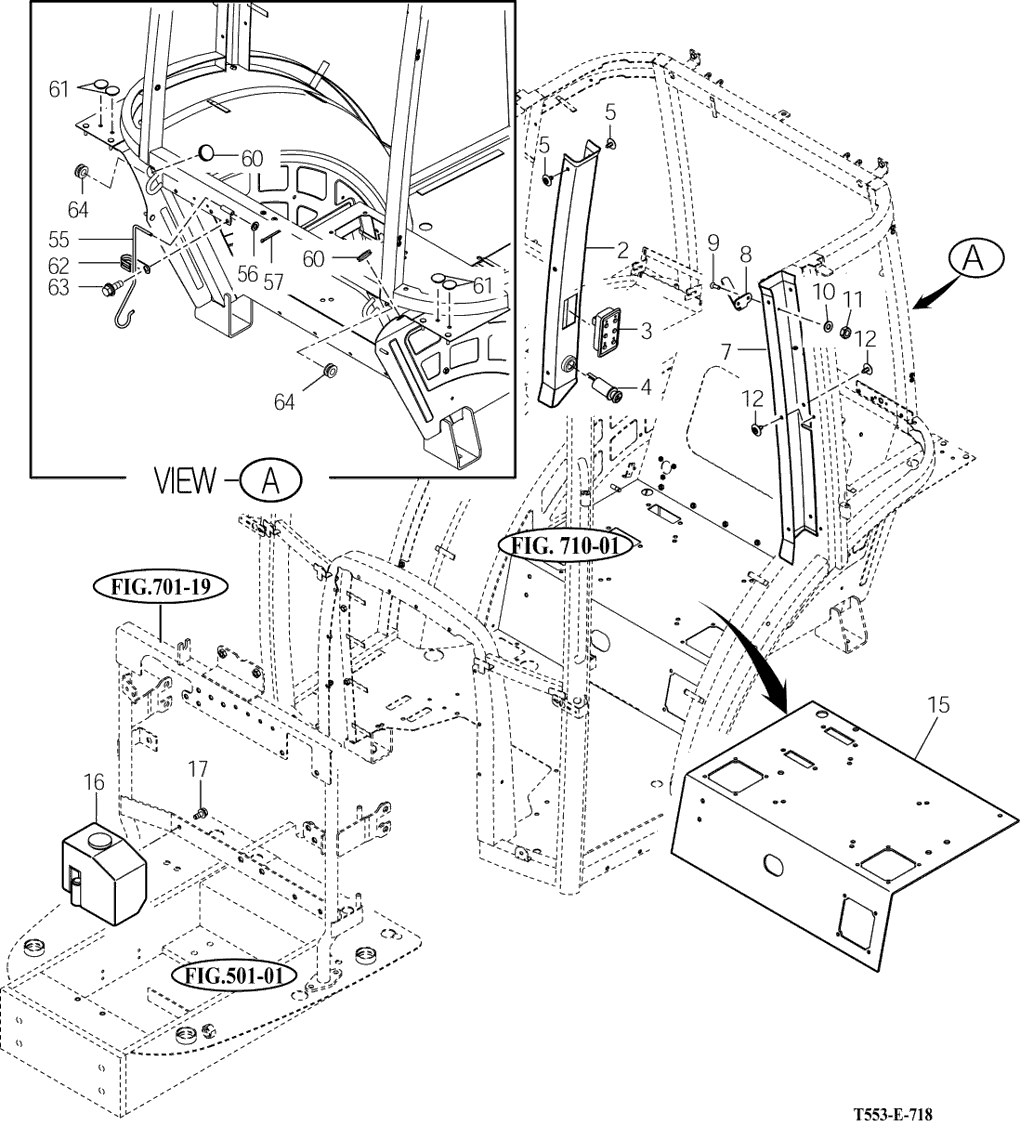

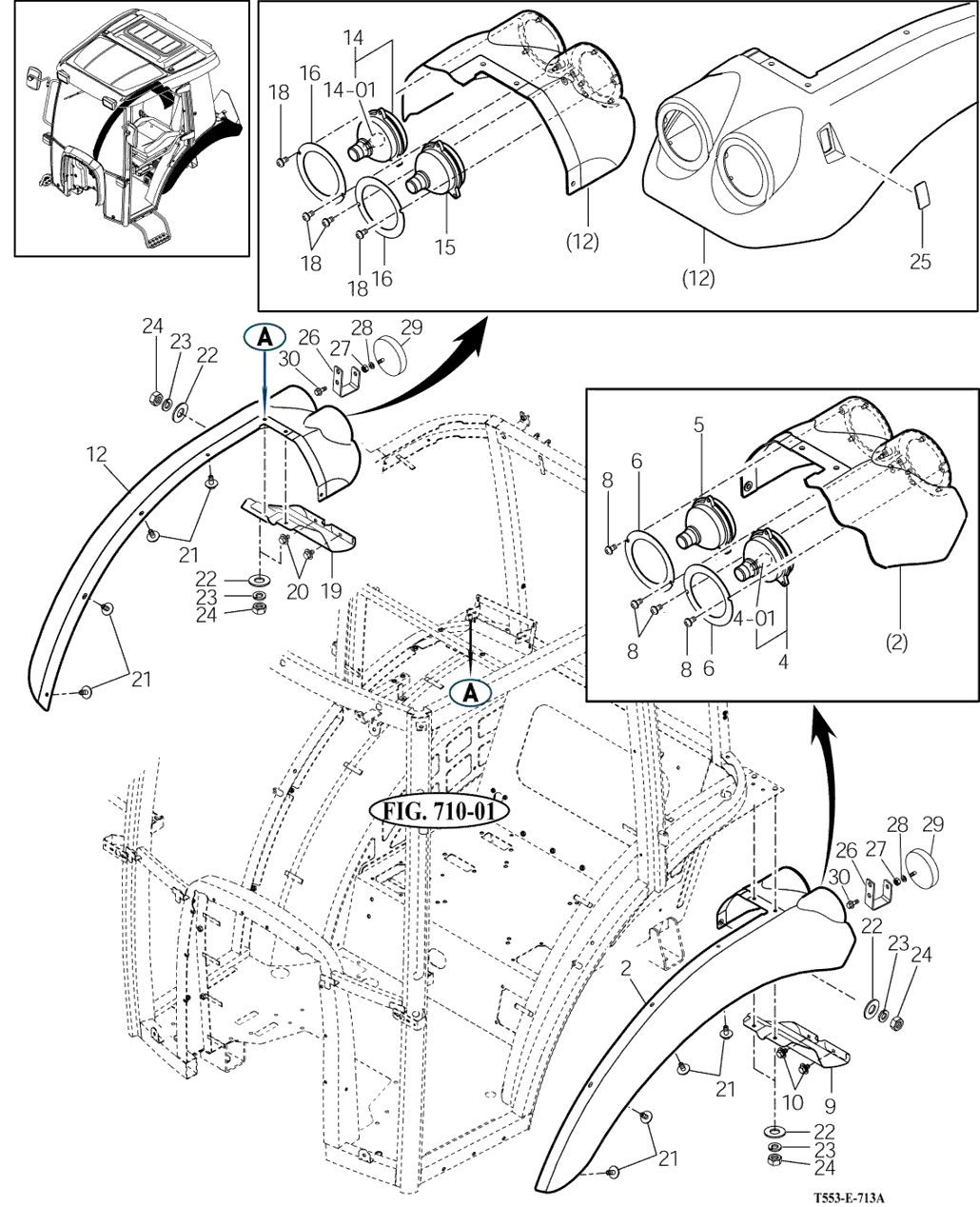

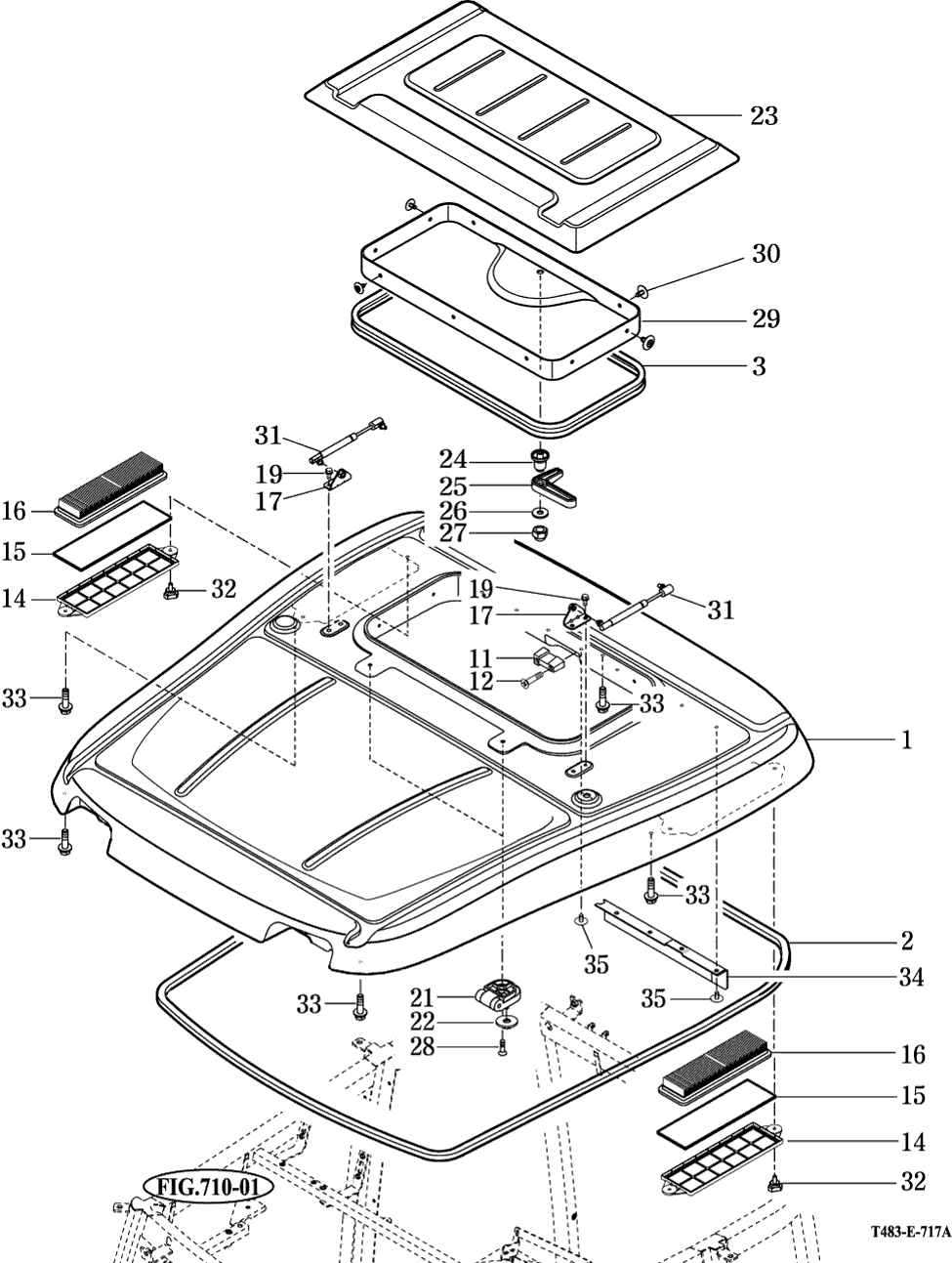

704A - LEVER COVER & STEP 709 - DOOR 710A - FRONT GLASS 711 - SIDE GLASS 713A - SUB FENDER & COVER 714A - MIRROR 715-1 - HEATER & AIR-CON 715-2 - HEATER & AIR-CON 716 - FENDER COVER 717 - ROOF 718 - CABIN INTERIOR 701 - HOOD (1) 719 - PEDAL SUB ASSY 705 - FRONT & REAR MOUNTING 706 - SEAT & MAT 712A - REAR GLASS 712B - REAR GLASS 702 - HOOD (2)
